20A Current Booster High Current High Power Potentiostat

CS2020B Current Booster

Single-channel potentiostat (CS350M/ CS310M/ CS300M etc) can achieve maximum±2A/10V output when it’s used alone. This value is ±1A/10V for each channel of bipotentiostat (CS2350M/CS2150M) and multichannel potentiostat (CS310X).

A current booster CS2020B can be connected to single-, bi-, or multi-channel potentiostat to boost the current (up to 20A). Please note that one set CS2020B can boost only one channel of bi- / multi-channel potentiostat.

When not connected the booster, the potentiostat can also be used alone.

CS2020B current booster +single channel potentiostat (such as CS350M)

CS2020B current booster +multi-channel potentiostat(framed in red)

Fig. 1: Curve for galvanostatic experiment- output constant current as high as 20A

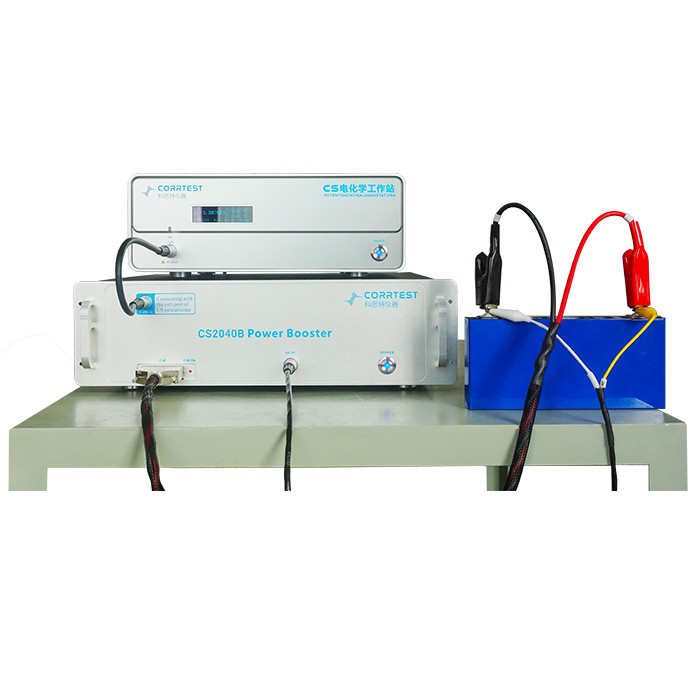

Fig. 2: Connection of CS2020B with battery core anode and cathode

Fig. 3: EIS results of CATL-LAE895 battery core

Key specifications (when combination of CS2020B+potentiostat)

Potential range: ±10V

Current range: ±20A

Current range: 20Afixed range

Compliance voltage: ±13V (when output±20Alimit current, maximum output ±10V@20A)

EIS Frequency range: =50KHz

Communication: RS485

Techniques (when combination of CS2020B+potentiostat)

Stable polarization

• Open Circuit Potential (OCP)

• Potentiostatic (I-T curve)

• Galvanostatic

• Potentiodynamic (Tafel plot)

• Galvanodynamic (DGP)

Transient Polarization

• Multi Potential Steps

• Multi Current Steps

• Potential Stair-Step (VSTEP)

• Galvanic Stair-Step (ISTEP)

Chrono Method

• Chronopotentiometry (CP)

• Chronoamperametry (CA)

• Chronocaulometry (CC)

Voltammetry

• Linear Sweep Voltammetry (LSV)

• Cyclic Voltammetry (CV)

Electrochemical Impedance Spectroscopy (EIS)

• EIS vs Frequency (IMP)

• EIS vs Time (IMPT)

• EIS vs Potential (IMPE)(Mott-Schottky)

Battery test

• Battery Charge and Discharge

• Galvanostatic Charge and Discharge (GCD)

• Potentiostatic Charging and Discharging(PCD)

• Potentiostatic Intermittent Titration Technique(PITT)

• Galvanostatic Intermittent Titration Technique(GITT)

Corrosion Measurements

• Cyclic polarization curve (CPP)

• Linear polarization curve (LPR)

• Electrochemical Potentiokinetic Reactivation (EPR)

• Electrochemical Noise (EN)

• Zero resistance Ammeter (ZRA)

Standard supply for CS2020B booster:

- CS2020B current booster instrument*1 set

- Power cable *1 pcs

- DB9 serial port connection cable *2 pcs (1 for replacement in the future in case it’s broken)

- DB15 connection cable*2 pcs (1 for replacement)

- Potential sampling cable*2 pcs (1 for replacement)

- CS2020B Specialized electrode cable (alligator electrode cable*2 and copper terminal electrode cable*2, 1 pcs each for replacement)

- High power dummy cell *1
